PCS -- Vertical lifting parking system

PCS -- Vertical lifting parking system
Description
Video
Basic Parameters

Operating principle:

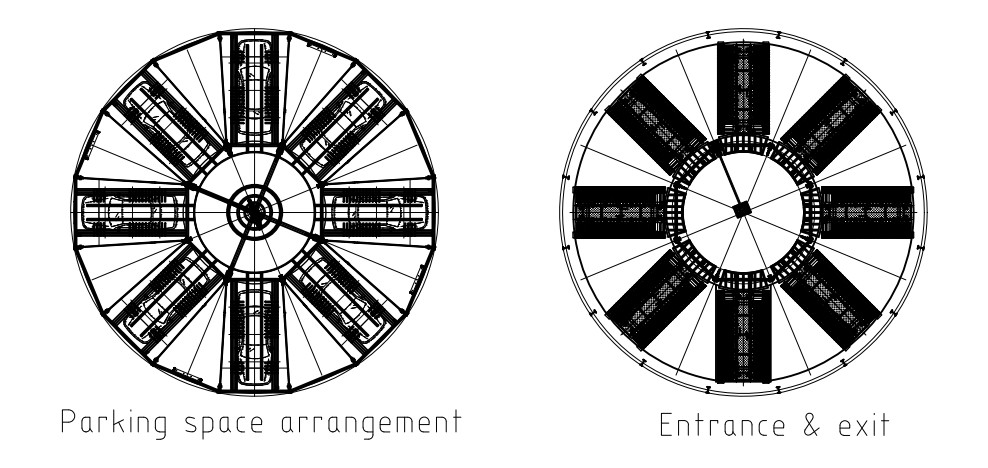

The garage is arranged in a circular or regular polygon shape, with a structure divided into inner and outer cylinders. The inner cylinder serves as a lifting channel, integrating a lifting platform, a rotating system, a leveling system, and a conveyor. The outer cylinder serves as a parking space, arranged radially, with 8-12 parking spaces available on each floor. The entrance and exit rooms can be set up at one or more berths on the ground floor, or on the lifting platform. When storing and retrieving vehicles, the transporter is responsible. The handling, lifting, and turning of the entrance room and lifting platform, as well as the lifting platform and berth, are synchronized to reach the designated berth.


Equipment features:

The equipment adopts traction drive form and can be arranged in three ways: above ground, underground, or semi above ground and semi underground. It is generally suitable for government, hospitals, enterprises and institutions, public parking lots and other places.

Drive Mode

Traction + wire rope

Car Size

Sedan≤5300*1900*1550mm (2-9 floor)

SUV  ≤5300*1900*2050mm (1 floor)

Car Weight

≤2350kg

Power & Speed

Lift

30kw   Max:95m/min

Turn

2.2kw  4.5rpm

Vehicle access method

Forward in and forward out

Power Resource

Three phase five wire  380V 50Hz


2. PCS -- Vertical lifting parking system (1).png

2. PCS -- Vertical lifting parking system (2).png
