PCS -- Vertical lifting parking system (tower type)

PCS -- Vertical lifting parking system (tower type)
Description
Video
Basic Parameters

Operating principle:

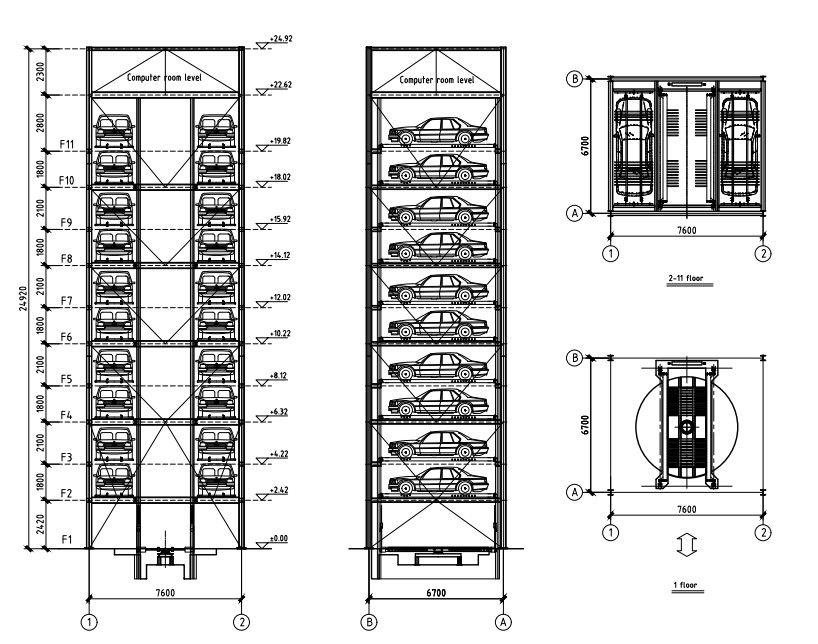

The garage is arranged in a rectangular shape, with 3 columns per tower. The structure is divided into a lifting channel and a berth. The lifting channel is equipped with a lifting comb frame and a lifting system, and the berths are distributed on both sides of the lifting channel. The entrance and exit rooms are located in the ground level lifting channels or equipped with fixed turntables. When storing and retrieving vehicles, the lifting comb frame and the transverse comb frame are exchanged to reach the designated level. The transverse comb frame is used to move the vehicle horizontally from the passage to the berth, and the vehicle is turned around by the turntable.


Equipment features:

The equipment adopts traction drive or hydraulic drive form, and can choose comb tooth or clamp wheel exchange form. It can be arranged above ground, half above ground and half underground, and is generally suitable for government, hospitals, enterprises, public parking lots and other places.


Drive Mode

Hydraulic

Car Size

Sedan ≤5300*1900*1550mm


SUV  ≤5300*1900*2050mm

Car Weight

≤2350kg

Power & Speed

Lift

30kw    60-120m/min


Turn

1.5kw      3.0rpm

Vehicle access method

Forward in and forward out

Power Resource

Three phase five wire  380V 50Hz
