PCS -- Vertical lifting parking system (multi-column)

PCS -- Vertical lifting parking system (multi-column)
Description
Video
Basic Parameters

Operating principle:

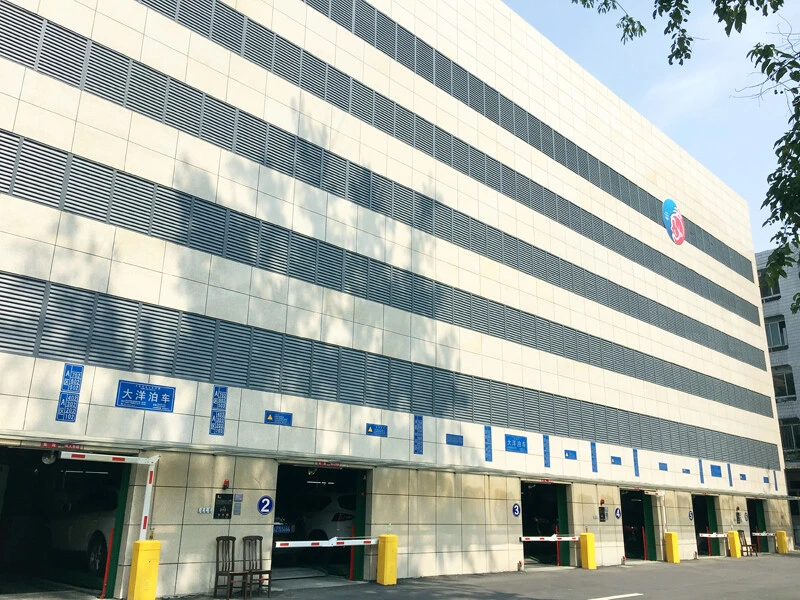

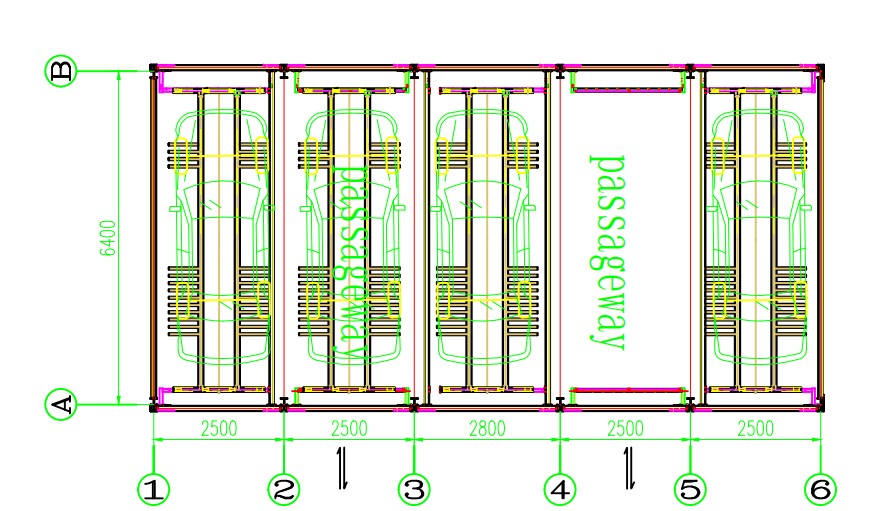

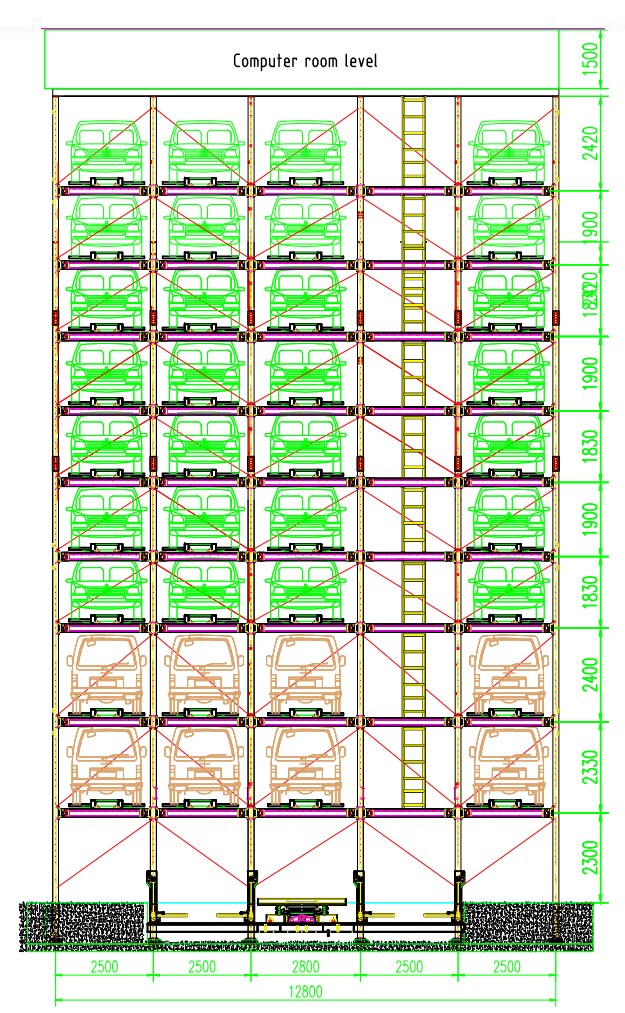

The garage is arranged in a rectangular shape, usually with 4 or more columns. The structure is divided into lifting channels and berths, arranged in a staggered manner, with one empty parking space on each floor serving as an exchange channel. The lifting channel is equipped with a lifting comb frame and lifting system, and the berth is a transverse comb frame. The entrance and exit rooms are located in the various elevators on the ground floor. When storing and retrieving vehicles, the lifting comb frame is exchanged with the transverse comb frame to reach the designated level, and the transverse comb frame is used to transport from the lifting channel to the berth.


Equipment features:

The equipment has two driving forms: hydraulic drive and traction drive. It can be arranged in two ways: above ground or semi above ground and semi underground. It is generally suitable for government, hospitals, enterprises, public parking lots and other places.



Drive Mode

Hydraulic

Car Size

Sedan ≤5300*1900*1550mm


SUV  ≤5300*1900*2050mm

Car Weight

≤2350kg

Power & Speed

Lift

7.5kw*3      36m/min


Slide

0.2kw       9.5m/min

Vehicle access method

Forward in and forward out

Power Resource

Three phase five wire  380V 50Hz



6 6.png
