PCS -- Vertical lifting parking system (cabinet type)

Operating principle:

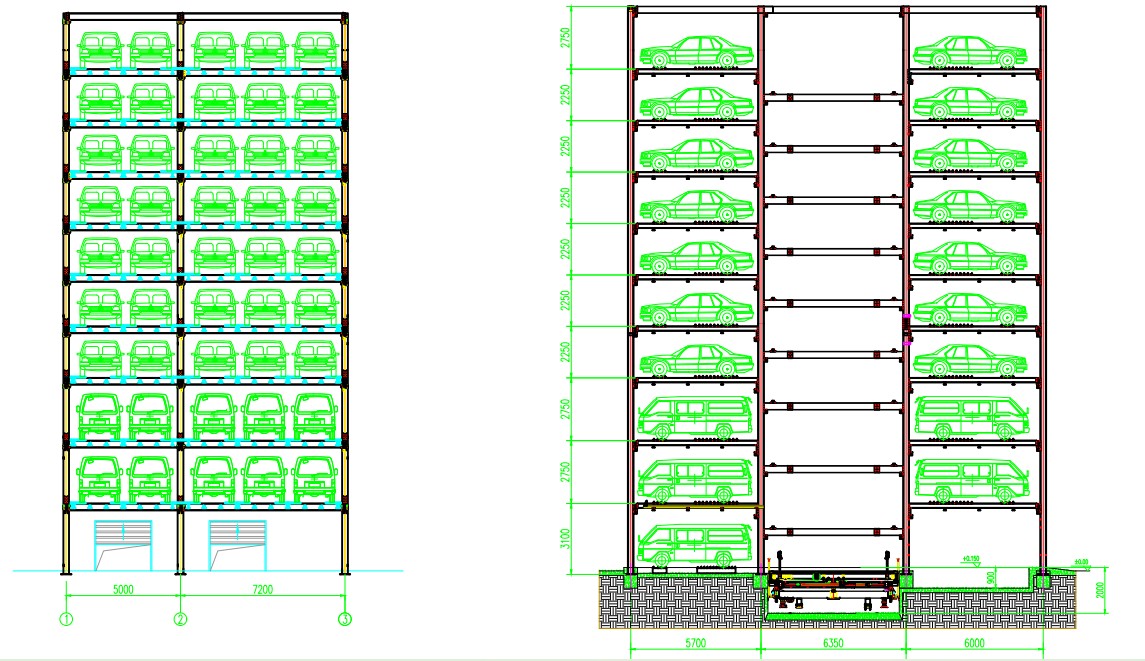

The garage is arranged in a rectangular shape, with a structure divided into alleyways and parking spaces. The roadway is a lifting channel that integrates lifting platforms, lateral rotation systems, leveling systems, and conveyors. The parking spaces are distributed parallel to both sides of the roadway, with 4-14 parking spaces available on each floor. The entrance and exit rooms can be set up at one or more berths on the ground floor, or on the lifting platform. When storing and retrieving vehicles, the transporter is responsible for the transportation of vehicles between the entrance and exit rooms and the lifting platform, as well as between the lifting platform and the parking space. The lifting, lateral movement, and rotation are completed simultaneously and arrive at the designated parking space.

Equipment features:

The equipment has two driving forms: hydraulic drive and traction drive. It can be arranged in three ways: above ground, underground, or semi above ground and semi underground. It is generally suitable for government, hospitals, enterprises, public parking lots, and other venues.
