PSH -- Vertical horizontal parking system

PSH -- Vertical horizontal parking system
Description
Video
Basic Parameters
Operating principle:

The equipment can be arranged in multiple columns, and each control unit has an empty parking space on the ground floor as an exchange parking space. Ground level parking spaces can directly access vehicles. When accessing upper level parking spaces, all ground level parking spaces between the parking space below and the empty parking space will be horizontally moved towards the direction of the empty parking space by a distance of one parking space, leaving a lift channel below the parking space. After the parking space is lowered to the ground, vehicles can access it.


Equipment features:

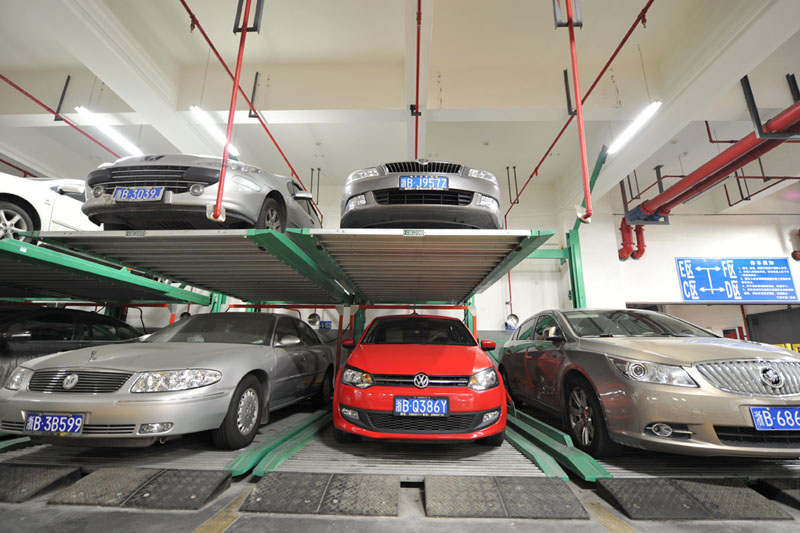

The equipment can be driven by motor drum, motor chain, hydraulic wire rope or hydraulic rear cantilever, and adopts the form of carrier plate exchange. It is generally suitable for underground or any open space on the ground.

Drive Mode

Motor drum

Car Size

Sedan≤5000*1850*1550mm

SUV  ≤5300*1900*2050mm

Car Weight

≤2000/2500kg

Power & Speed

Lift

2.2kw        4.7m/min

Slide

0.2kw        7.5m/min

Power Resource

Three phase five wire  380V 50Hz

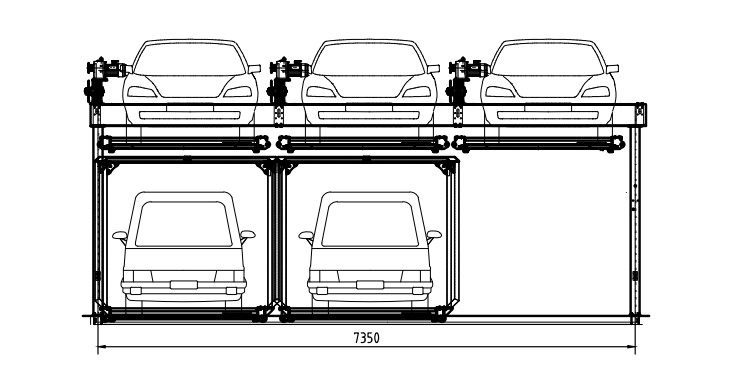

1. PSH -- Vertical horizontal parking system (1).png

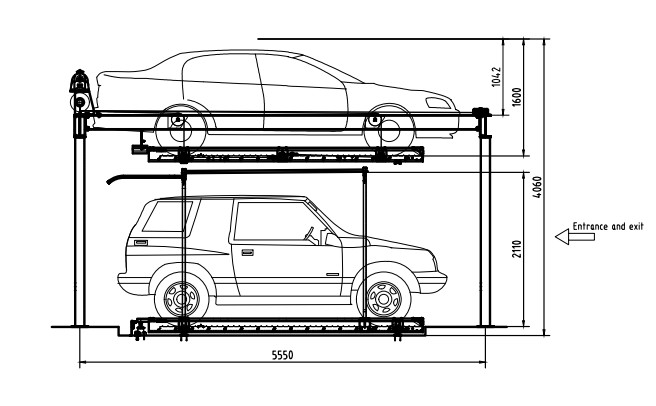

1. PSH -- Vertical horizontal parking system (2).png
