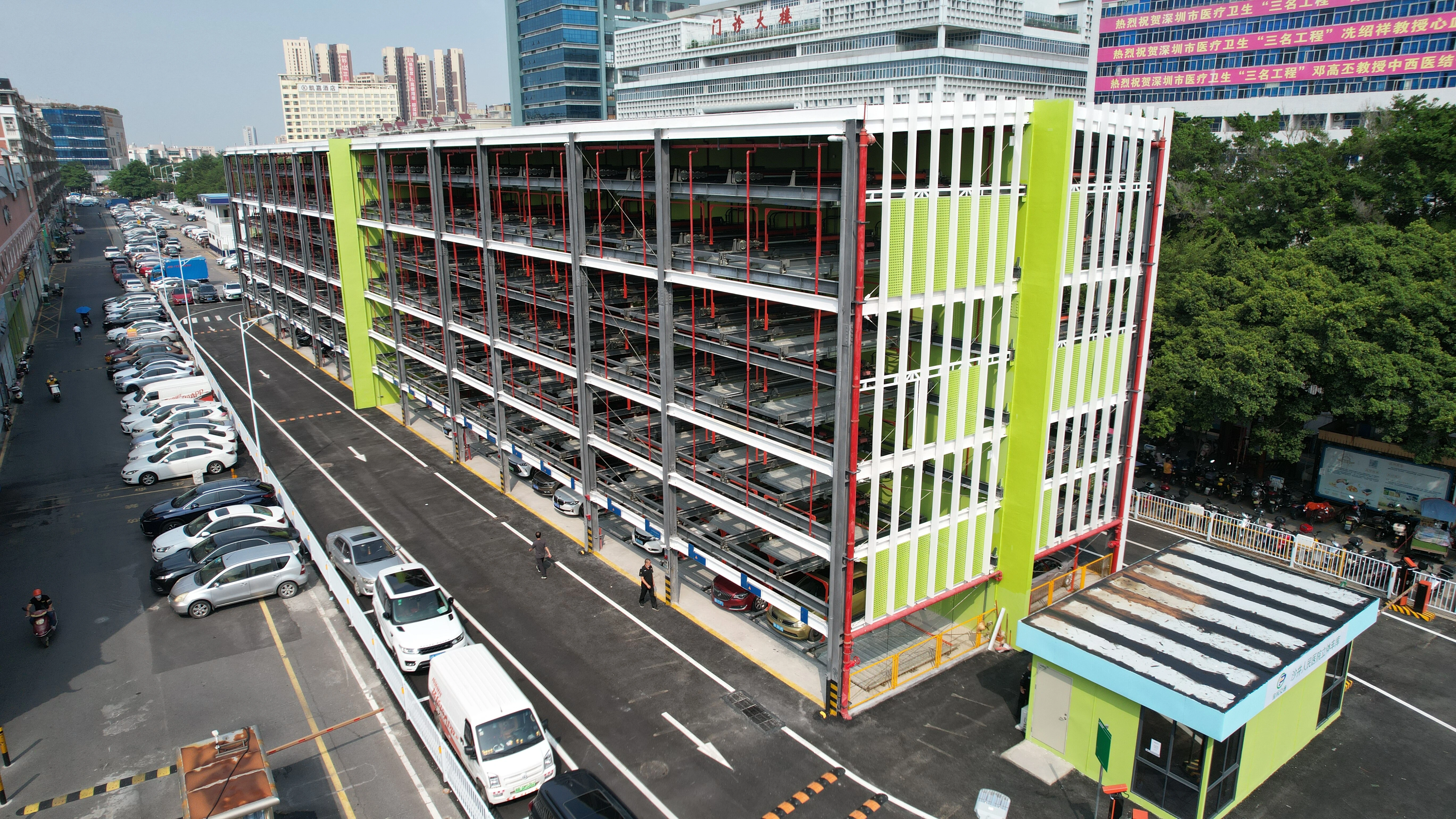

PSH -- Vertical horizontal parking system (3-8 floor)

Operating principle:

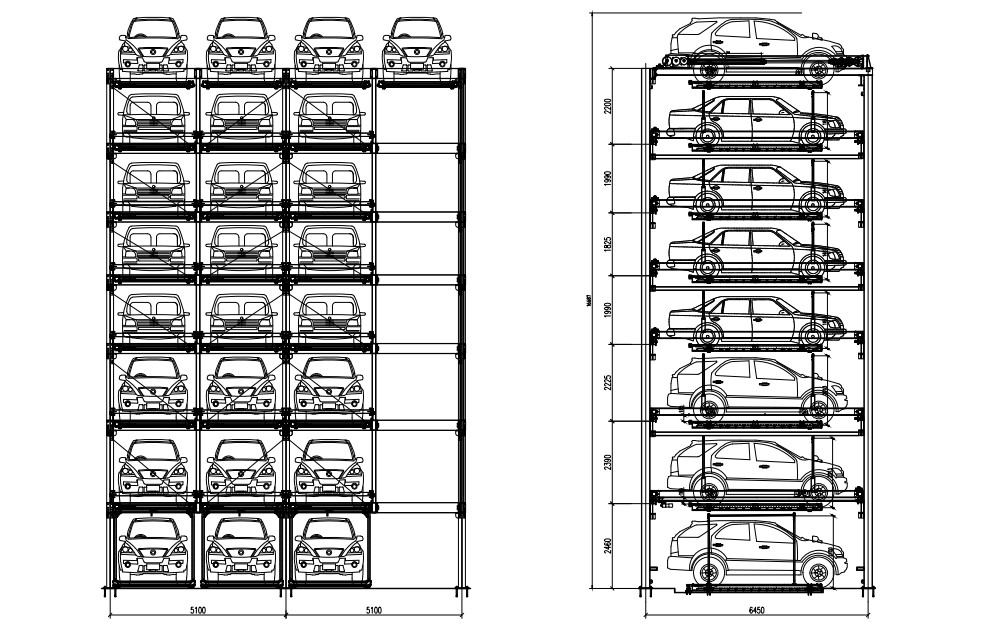

The equipment is arranged in multiple layers and columns. Except for the top layer, each layer is equipped with an empty parking space as an exchange parking space. When the target parking space needs to be accessed, all parking spaces below the parking space and between the empty parking spaces are horizontally moved towards the direction of the empty parking space by one parking space, leaving a lift channel below the parking space. After the parking space is lowered to the ground, vehicles can access it.

Equipment features:

Equipment features: The equipment can be driven by a motor or hydraulic system, and adopts a carrier plate exchange form. It is generally suitable for use in basements or any open space on the ground.
