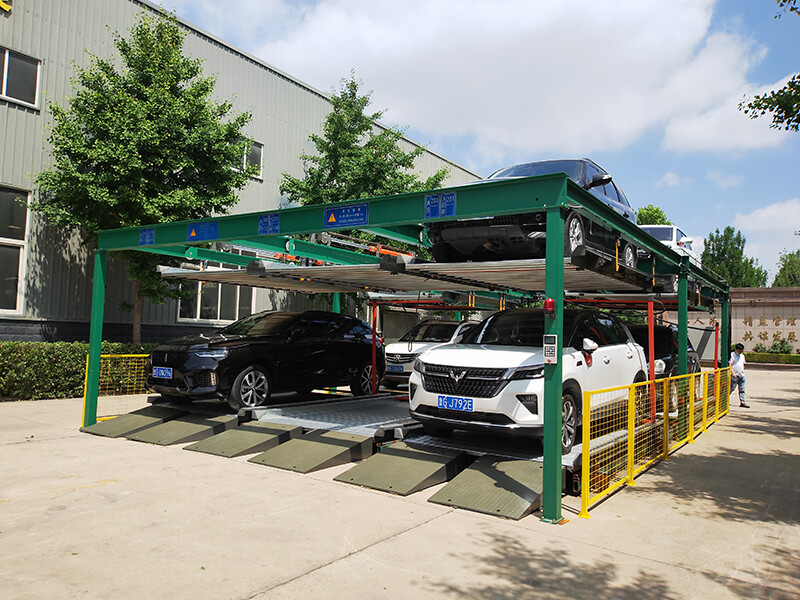

PSH -- Vertical horizontal parking system (Tandem Longitudinal Moving)

PSH -- Vertical horizontal parking system (Tandem Longitudinal Moving)
Description
Video
Basic Parameters

Working principle

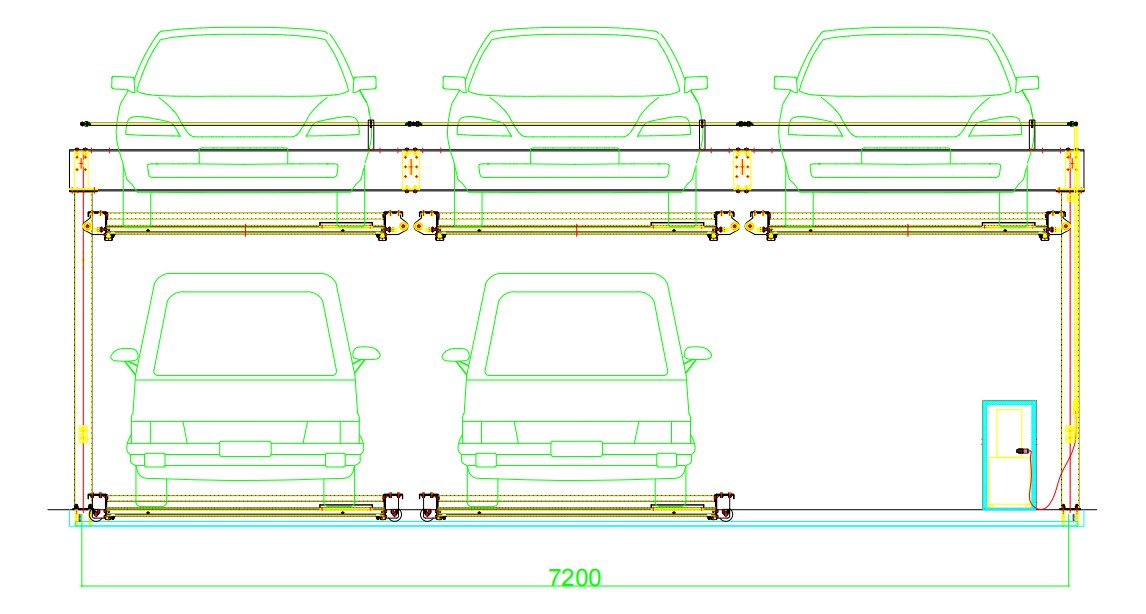

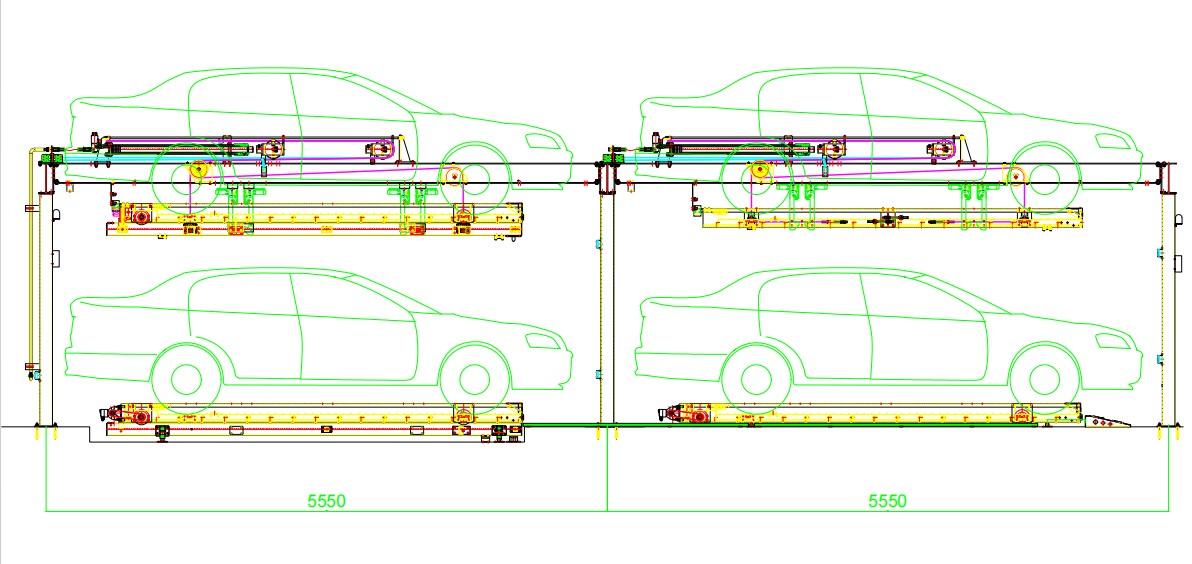

The lower parking space of the front row vehicles can directly access the vehicles and move left and right. After the lower parking space is moved out of the space, the upper parking space descends to the ground, and the vehicles can enter and exit. When accessing rear vehicles, the corresponding lower level vehicles in the front row have a vacant space, and the vehicles can move vertically to the front row for entry and exit.


Equipment features

Simple structure, easy installation, and easy operation; Suitable for special locations where two rows of parking spaces can be arranged, increasing the number of parking spaces; Rear vehicles do not require the owner to drive in or out, making it convenient to access;

Drive Mode

Hydraulic

Motor

Car Size

Sedan≤5000*1850*1550mm

SUV  ≤5000*1850*2050mm

Car Weight

≤2000kg

Power & Speed

Lift

4kw  5-10m/min

2.2kw  4-5m/min

Slide

 0.2kw         7.5m/min

Longitudinal move

0.2kw   7.5 m/min

Vehicle access method

Forward in & forward out

Power Resource

Three phase five wire  380V 50Hz
