PSH -- Vertical horizontal parking system (rear cantilever)

PSH -- Vertical horizontal parking system (rear cantilever)
Description
Video
Basic Parameters

Operating principle:

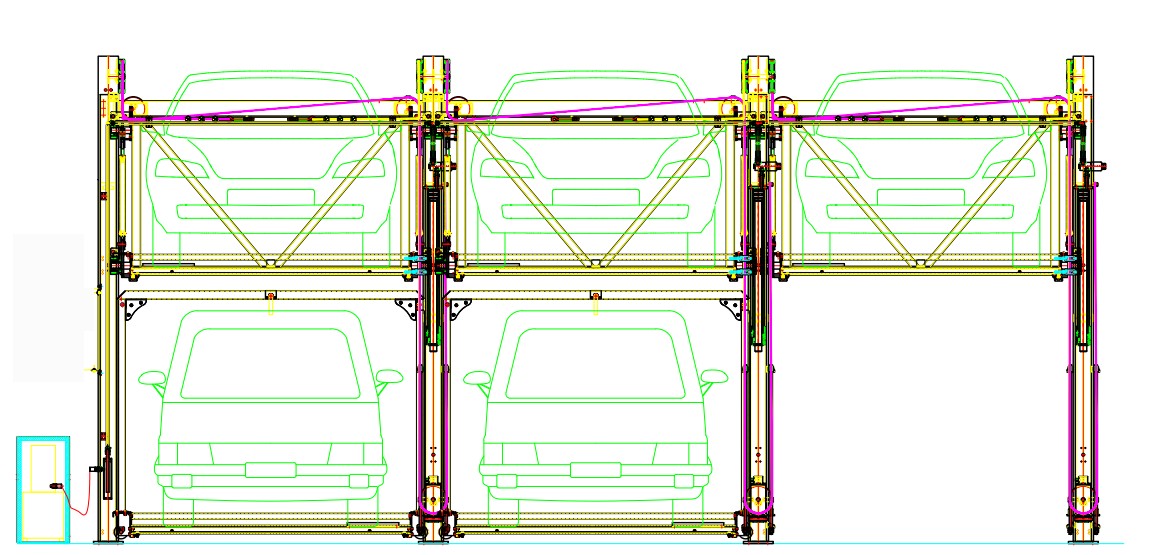

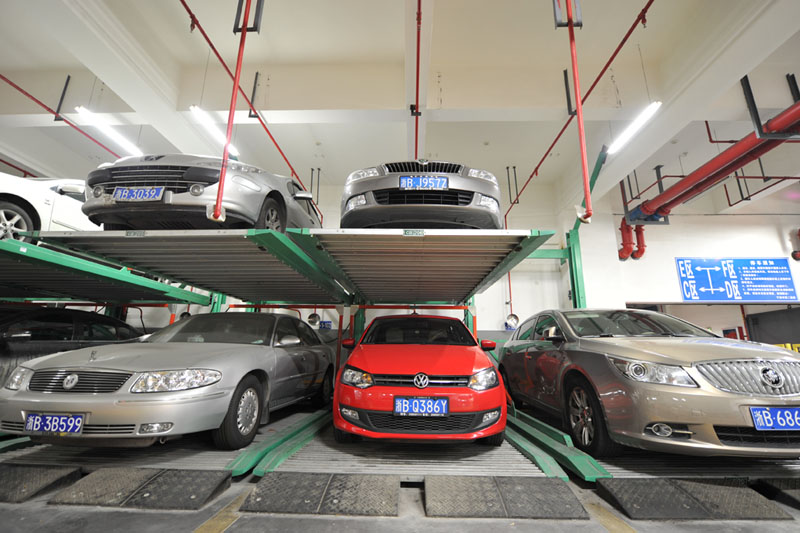

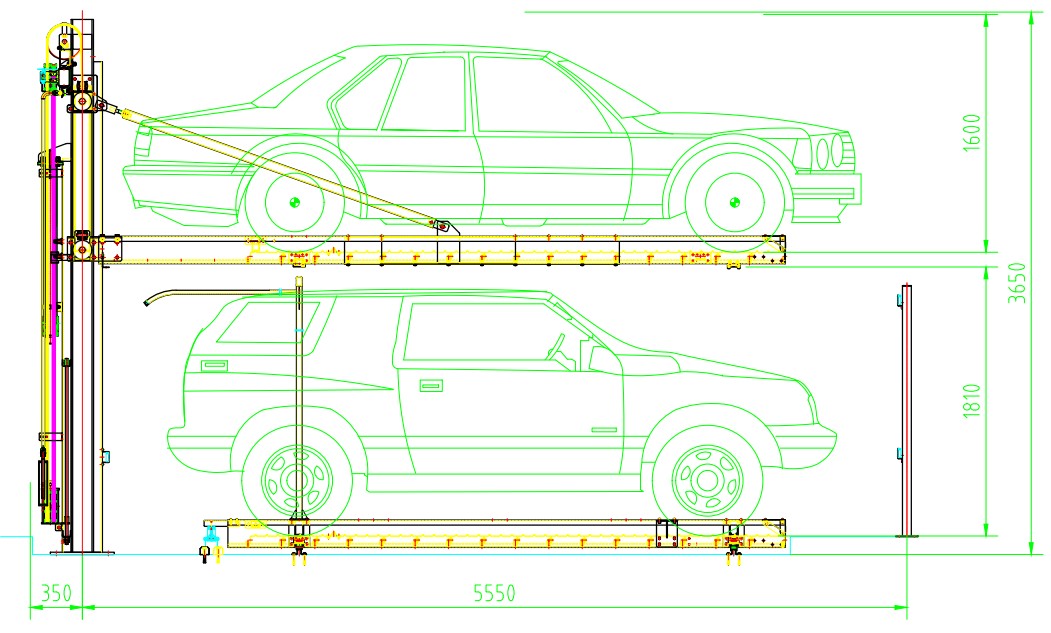

There are two levels of parking spaces, one above and one below. The lower level parking space allows for direct access to vehicles and can be moved left and right. After the lower level parking space is removed from the space, the upper level parking space descends to the ground, allowing vehicles to freely enter and exit.


Equipment features:

Adopting hydraulic drive, steel wire rope lifting or motor-driven chain lifting; By fully utilizing space, multiple groups can be arranged in parallel to increase the number of parking spaces; Button swiping operation, flexible and convenient; No front pillar, spacious passage, easy access.




Drive Mode

Hydraulic

Car Size

Sedan≤5000*1850*1550mm


SUV  ≤5000*1850*2050mm

Car Weight

≤2000/2500kg

Power & Speed

Lift

4kw        5-9m/min


Slide

0.2kw        7.5m/min

Power Resource

Three phase five wire  380V 50Hz
