PXD -- Stacking parking system

PXD -- Stacking parking system
Description
Video
Basic Parameters
Operating principle:

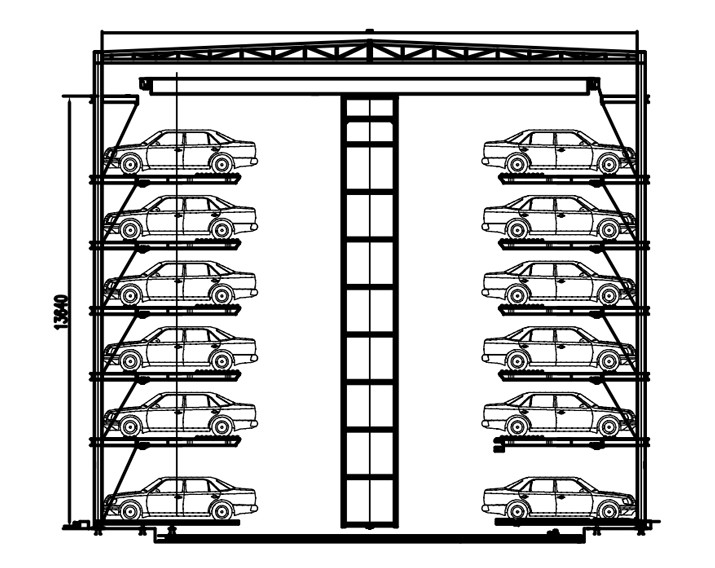

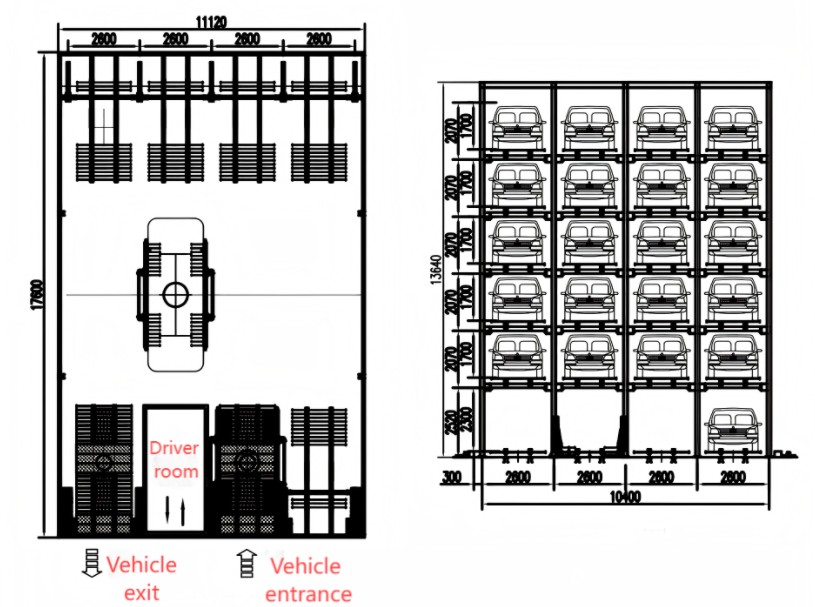

The garage is arranged in a rectangular shape, with a structure divided into alleyways and parking spaces. The alleyways are equipped with vertical stacker cranes, which integrate lifting, lateral movement, longitudinal movement, and rotation systems. The berths are distributed parallel to both sides of the roadway, and one or more entrance and exit rooms and ground level berths can be set up. When storing and retrieving vehicles, the vertical stacker crane is used to carry and rotate the vehicles from the entrance and exit room to the berth.


Equipment features:

The equipment adopts a motor drum drive form and a comb tooth exchange form. The inlet and outlet can be set on the front and side, and can be arranged in both directions. It is generally suitable for any open space on the ground.


Drive Mode

Motor chain

Car Size

Sedan ≤5300*1900*1550mm

SUV  ≤5300*1900*2050mm

Car Weight

≤2350kg

Power & Speed

Lift

15kw          Max:30m/min


Slide

2.2kw           Max:30m/min

Vehicle access method

Forward in & forward out

Power Resource

Three phase five wire  380V 50Hz
