PXD -- Stacking parking system （traditional）

Operating principle:

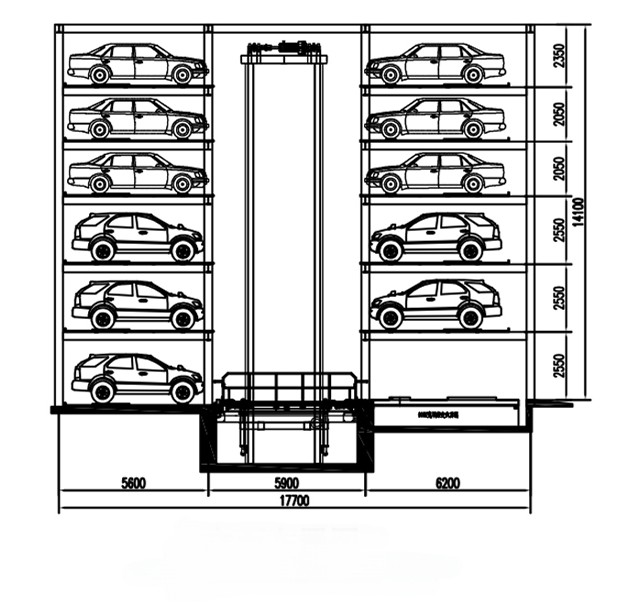

The garage uses a stacker crane to complete the vertical and horizontal movement of cars, and uses a carrier to transport vehicles from the entrance and exit to the stacker crane, and from the stacker crane to the parking space. The turning of vehicles is achieved through the revolving disc in the entrance and exit room to complete car access.

Equipment features:

The equipment is driven by a motor drum or hydraulic drive, and can be arranged in three ways: above ground, underground, or semi above ground and semi underground. It is generally suitable for sites with large above ground or underground parking capacity.
