PJS -- Pit lifting parking system

PJS -- Pit lifting parking system
Description
Video
Basic Parameters

Operating principle:

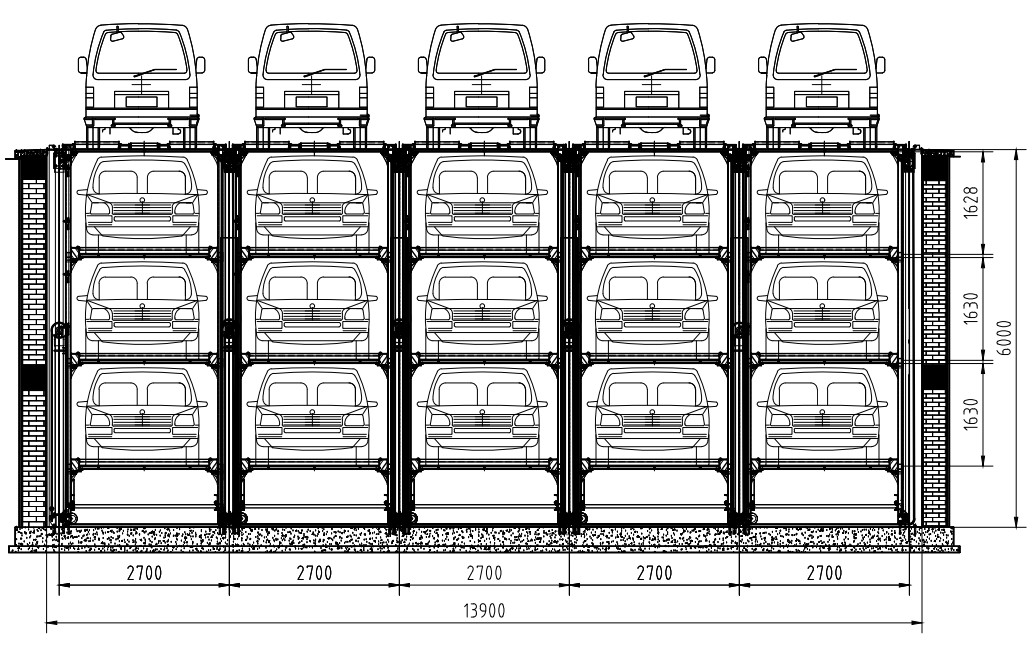

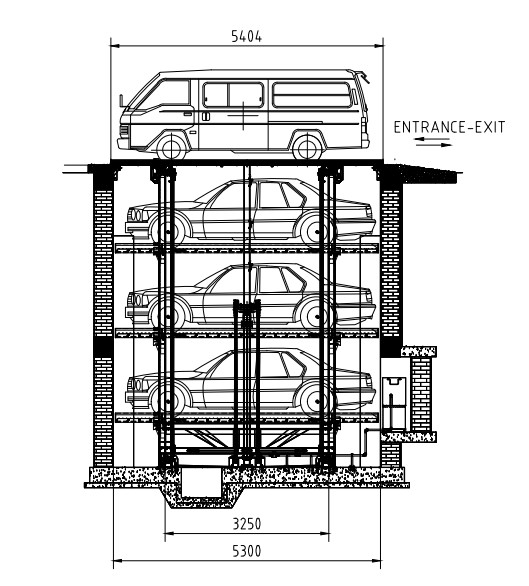

The equipment is divided into three or four layers, with the same column lifting and lowering as a whole. Normally, two or three parking spaces in the middle and lower levels are located in the pit, while the upper level parking space is level with the ground and can directly access vehicles. When accessing the middle and lower level parking spaces, the entire train rises together, and when the corresponding parking space carrying board is level with the ground, access can be achieved.


Equipment features:

The equipment adopts a hydraulic drive form and is generally arranged in three ways: negative one positive one, negative two positive one, and negative three positive. It is suitable for places with high lighting requirements such as residential areas, shopping malls, and office buildings.


Drive Mode

Hydraulic

Car Size

Sedan  ≤5000*1850*1550mm  (Basement floor)


SUV    ≤5000*1850*2050mm  (Ground floor)

Car Weight

≤2000kg/2350kg

Power & Speed

Lift

11kw        5.0-6.0m/min

Car No.

8

Power Resource

Three phase five wire  380V 50Hz
