PJS -- Easy parking car lift (stacker )

PJS -- Easy parking car lift (stacker )
Description
Video
Basic Parameters

Operating principle:

Three or four parking spaces are considered as a storage unit. When storing cars, the top layer vehicles are stored first, followed by the middle layer vehicles, and the bottom layer vehicles are stored last. The order of retrieving cars is reversed.


Equipment features:

Hydraulic drive, steel wire rope lifting, safe and reliable; Significantly increase parking spaces, with high cost-effectiveness.




Drive Mode

Hydraulic + wire rope

Car Size

SUV  ≤5300*1900*1900mm

Car Weight

≤2500kg

Power & Speed

Lift up

5.5kw        4.5m/min


Lift down

5.5kw        5m/min

Car No.

6

Power Resource

Three phase five wire  380V 50Hz

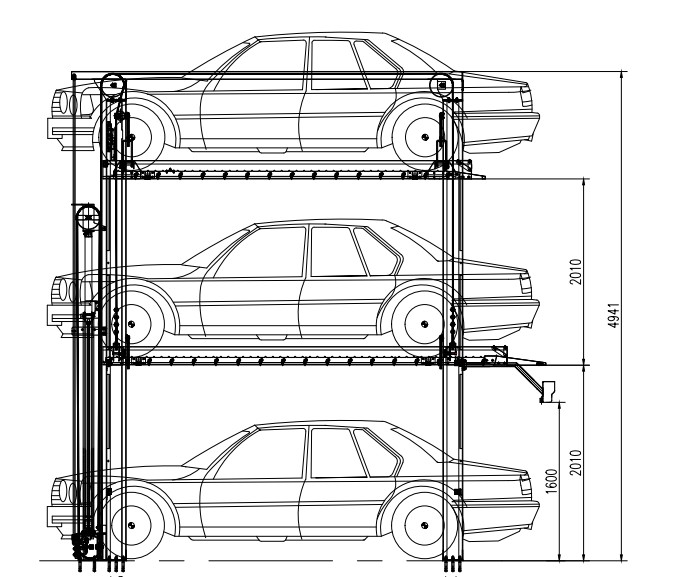

3 3.png
