PCX -- Vertical rotary parking system

PCX -- Vertical rotary parking system
Description
Video
Basic Parameters

Equipment principle

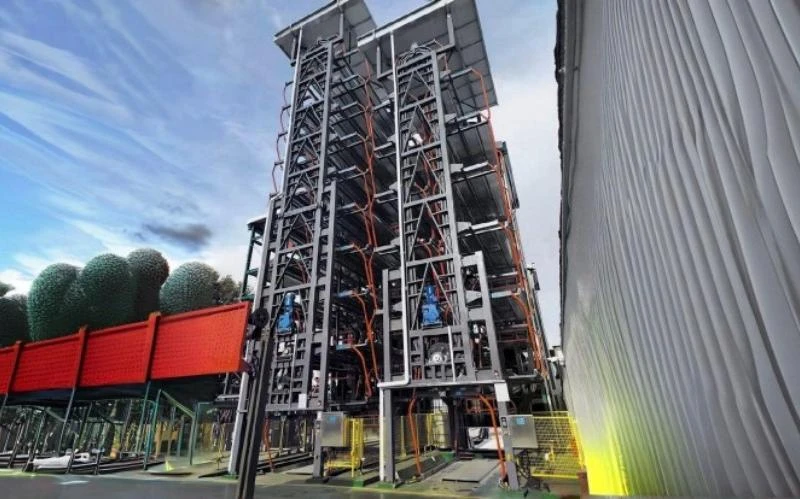

Vertical circulation parking equipment refers to parking devices in which the transporter performs circular motion in a vertical plane, consisting of a metal structural frame, transporter, drive system, control system, safety and detection system.


Equipment features:

The equipment adopts a motor-driven form and is arranged on the ground, generally suitable for construction and use in small plots of land.

Drive Mode

Motor chain

Car Size

≤5300*1900*2000mm

Car Weight

≤2350kg

Power & Speed

Lift

22kw            6.9m/min

Vehicle access method

Forward inbound, reverse outbound

Power Resource

Three phase five wire  380V 50Hz

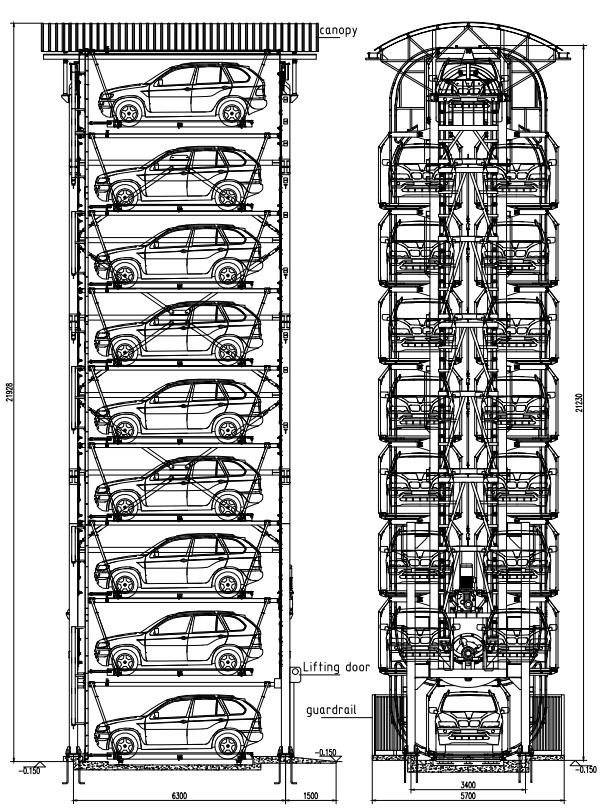

5. PCX -- Vertical rotary parking system (2).png
